$152-1155 /set
| Zahlungsart: | L/C,D/P,D/A,T/T,MoneyGram |
| Minimum der Bestellmenge: | 1 set |
| Hafen: | Shanghai |

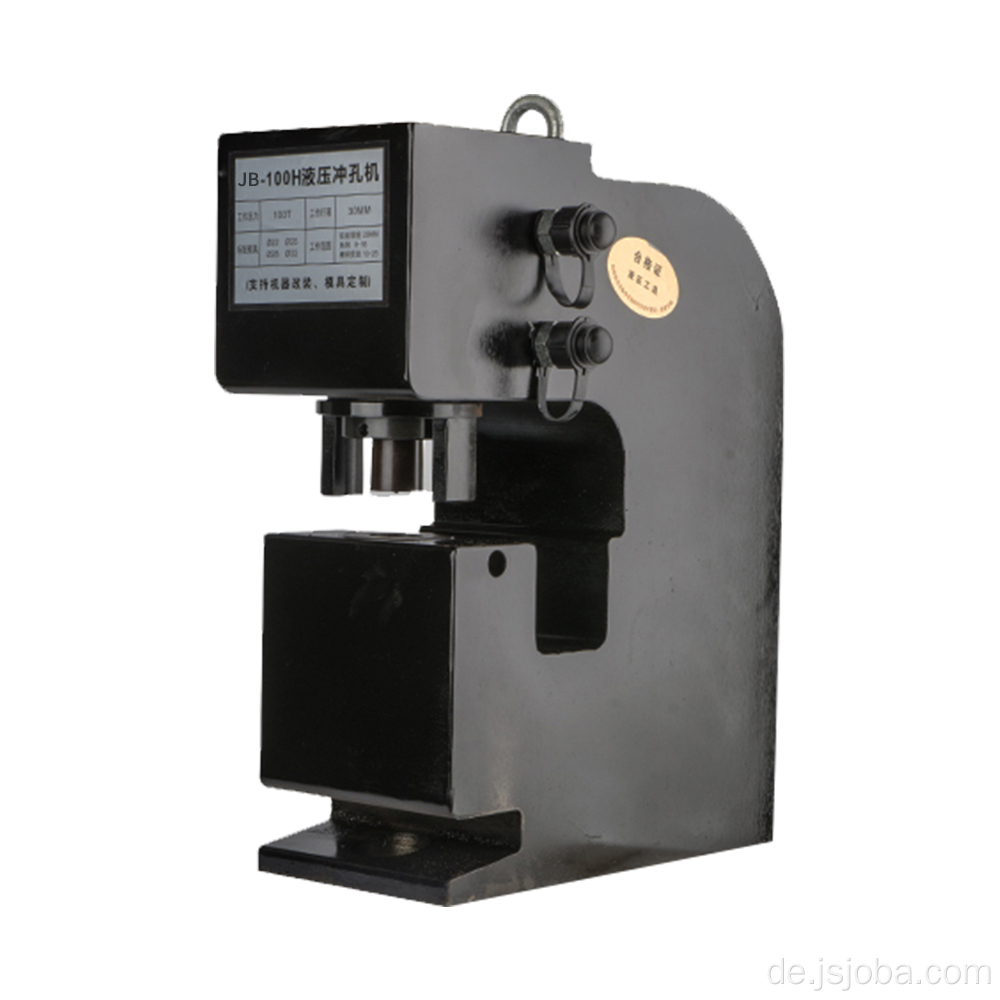

Product Name: Hydraulic Hole Punching Tool
Model Number: JB-75, JB-80A, JB-80H, JB-100A, JB-100H, JB-150A, JB-200A
Application: Construction
Channel Steel: 8-16, 8-15, 10-15
Angle Iron: 4-12, 6-16, 8-15
Iron Plate: 12mm, 16mm, 20mm, 25mm, 30mm
Pressure: 35T, 50T, 100T, 150T, 200T
| Verkaufseinheiten | : | set |
| Pakettyp | : | Holzkoffer für hydraulisches Loch -Stanzwerkzeug |
CH-80/100/2 Hydraulikloch-Stanzwerkzeug
|
MODEL
|
JB-75 SINGLE LOOP
|
PRESSURE
|
35T
|
||
|
STROKE
|
25mm
|
SIZE
|
high 265mm*long240mm
|
||
|
DEPTH OF THROAT
|
85mm
|
CRIMPING DIE
|
φ10.5 φ13.5 φ17 φ20.5mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 12mm, angle steel 4-12, channel steel wide surface 8-16
|
|
|
||
|
MODEL
|
JB-75 DOUBLE CIRCUIT
|
PRESSURE
|
35T
|
||
|
STROKE
|
20mm
|
SIZE
|
high 265mm*long240mm
|
||
|
DEPTH OF THROAT
|
85mm
|
CRIMPING DIE
|
φ12 φ14 φ16 φ18mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 12mm, angle steel 4-12, channel steel wide surface 8-16
|
|
|
||
|
MODEL
|
JB-80A
|
PRESSURE
|
50T
|
||
|
STROKE
|
25mm
|
SIZE
|
high 300mm*long320mm
|
||
|
DEPTH OF THROAT
|
118mm
|
CRIMPING DIE
|
φ16 φ18 φ22φ25mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 16mm, angle steel 6-16, channel steel wide surface 8-15
|
|
|
||
|
MODEL
|
JB-80H
|
PRESSURE
|
50T
|
||
|
STROKE
|
25mm
|
SIZE
|
high 330mm*long320mm
|
||
|
DEPTH OF THROAT
|
118mm
|
CRIMPING DIE
|
φ16 φ18 φ22φ25mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 16mm, angle steel 6-16, channel steel wide surface 8-15
|
|
|
||
|
MODEL
|
JB-100A
|
PRESSURE
|
100T
|
||
|
STROKE
|
25mm
|
SIZE
|
high 370mm*long370mm
|
||
|
DEPTH OF THROAT
|
135mm
|
CRIMPING DIE
|
φ22 φ25 φ28φ32mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 20mm, angle steel 8-15, channel steel wide surface 10-15
|
|
|
||
|
MODEL
|
JB-100H
|
PRESSURE
|
100T
|
||
|
STROKE
|
30mm
|
SIZE
|
high 450mm*long370mm
|
||
|
DEPTH OF THROAT
|
120mm
|
CRIMPING DIE
|
φ22 φ25 φ28φ32mm
|
||
|
SCOPE OF USE
|
Iron plate thickness 20mm, angle steel 8-15, channel steel wide surface 10-15, H-beam 8 to 15
|
|
|
||
|
MODEL
|
JB-150A
|
PRESSURE
|
150T
|
|
STROKE
|
40mm
|
SIZE
|
high 430mm*long430mm
|
|
DEPTH OF THROAT
|
150mm
|
CRIMPING DIE
|
φ22 φ25 φ28φ32mm
|
|
SCOPE OF USE
|
Iron plate thickness 25mm
|
|
|
|
MODEL
|
JB-200A
|
PRESSURE
|
200T
|
|
STROKE
|
40mm
|
SIZE
|
high 450mm*long470mm
|
|
DEPTH OF THROAT
|
140mm
|
CRIMPING DIE
|
φ22 φ25 φ28φ32mm
|
|
SCOPE OF USE
|
Iron plate thickness 30mm
|
|
|
